A reverse osmosis system for a data center should be designed around more than just the required flow rate. Feed-water quality, cooling tower makeup demand, RO recovery, treated-water storage, redundancy, automation and future expansion should all be considered to ensure reliable operation.

A typical treatment process may include:

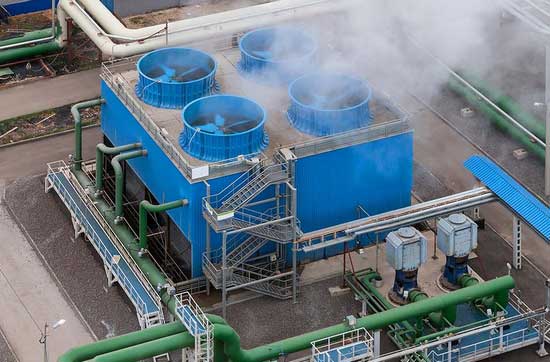

Source Water → Pretreatment → Cartridge Filtration → Reverse Osmosis → Treated Water Storage → Cooling Tower Makeup

Key Design Considerations

Water Quality

A complete water analysis should be reviewed for TDS, hardness, alkalinity, silica, chloride, sulfate, pH, turbidity, iron, manganese, chlorine and temperature. These parameters help determine pretreatment, membrane selection, chemical dosing and practical RO recovery.

System Capacity

RO capacity should consider both average and peak cooling tower makeup demand. Treated-water storage can provide a buffer between RO production and changing cooling loads.

Pretreatment

Depending on the source water, pretreatment may include media filtration, water softening, ultrafiltration, dechlorination, antiscalant dosing and cartridge filtration to protect the RO membranes.

RO Recovery

Recovery should be established from the actual feed-water chemistry and membrane projection. Increasing recovery reduces concentrate volume but may increase membrane scaling potential.

Redundancy

Mission-critical data centers should consider N+1 or 2 × 100% redundancy. Pumps, pretreatment, controls and distribution equipment should also be evaluated to avoid single points of failure.

Storage & Distribution

A treated-water tank provides reserve capacity during maintenance, membrane flushing, equipment shutdown or sudden increases in cooling demand.

Automation

PLC/HMI controls can monitor pressures, flows, conductivity, tank levels, RO recovery, chemical dosing, alarms and system status. Integration with the facility BMS can also be provided where required.
